Used 2012 GH 20 Tonne 51 Metre Goliath Gantry Crane for Sale

Product ID: 1932
Gallery Thumbnail
Gallery Thumbnail
Gallery Thumbnail
Gallery Thumbnail

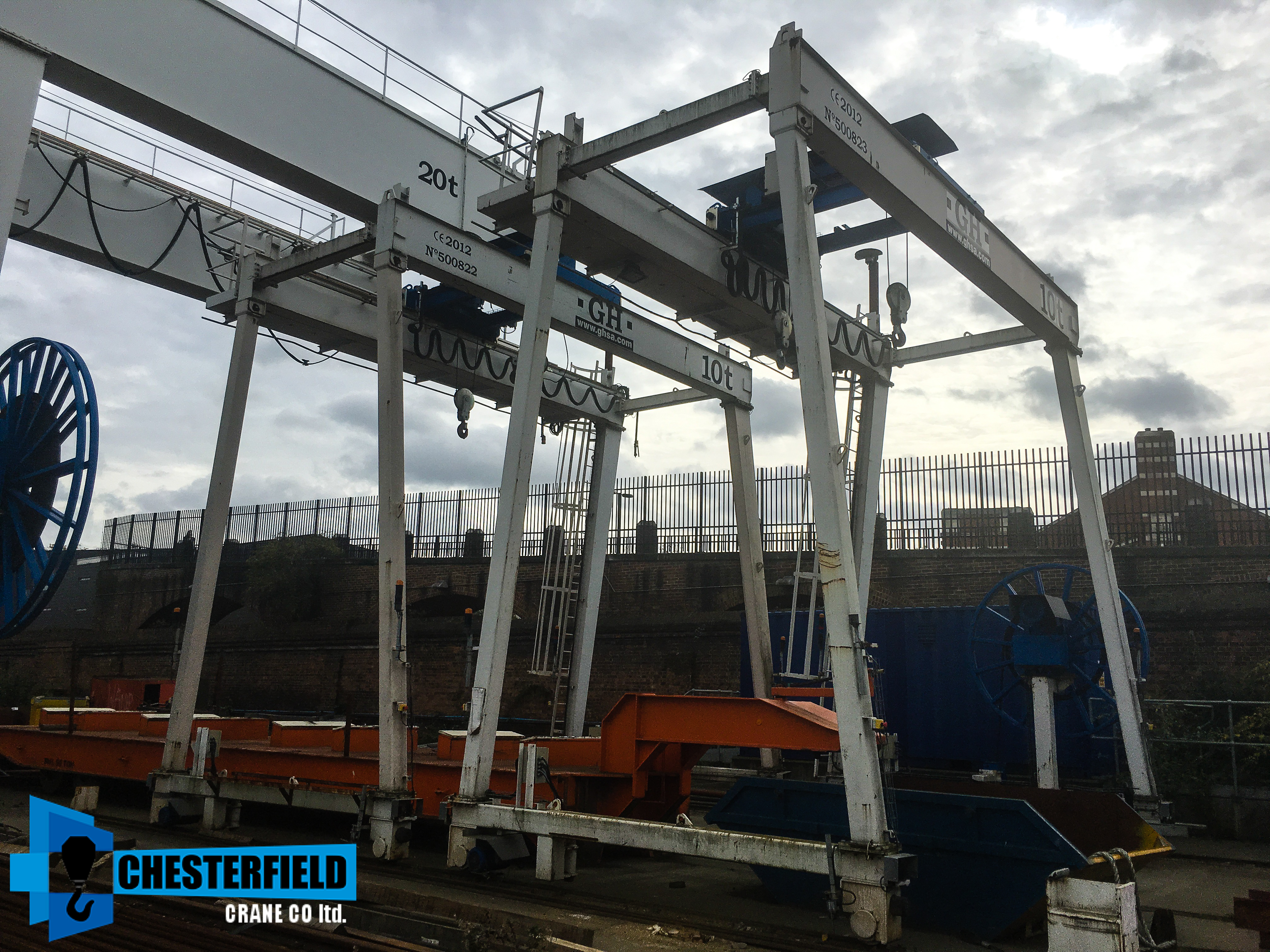

We have just bought 2x used GH 2012 20 tonne 51,000mm Goliath Gantry cranes, and they are ‘as new’. The cranes are inverter dual speed control and currently have 4x 5 tonne hoists on 1x 20 tonne crab unit for 4x point tandem lifting. We also have 20 and 20/5 tonne hoist and crab units if you require a different configuration.

If you wanted the crane refurbishing and modifying to suit your span (ie. cutting down) then our 82 metre long manufacturing facilities are capable of accommodating any crane.



Provisional Specifications



Crane and Steelwork

  • Crane Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • SWL:  20,000kg
  • Span:  51,000mm (25,500mm sections bolted together)
  • Number of Beam(s):  2x
  • Maintenance Platform:  Full Length Maintenance Walkway

Hoist and Carriages

  • Hoist Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • Duty Rating:  M5
  • Height of Lift:  10,000mm
  • Number of Hoist(s):  4x
  • Number of Auxiliary Hoist(s):  0x
  • Number of Crab Carriage Unit(s):  1x
  • Number of End Carriages:  2x (8 wheels)

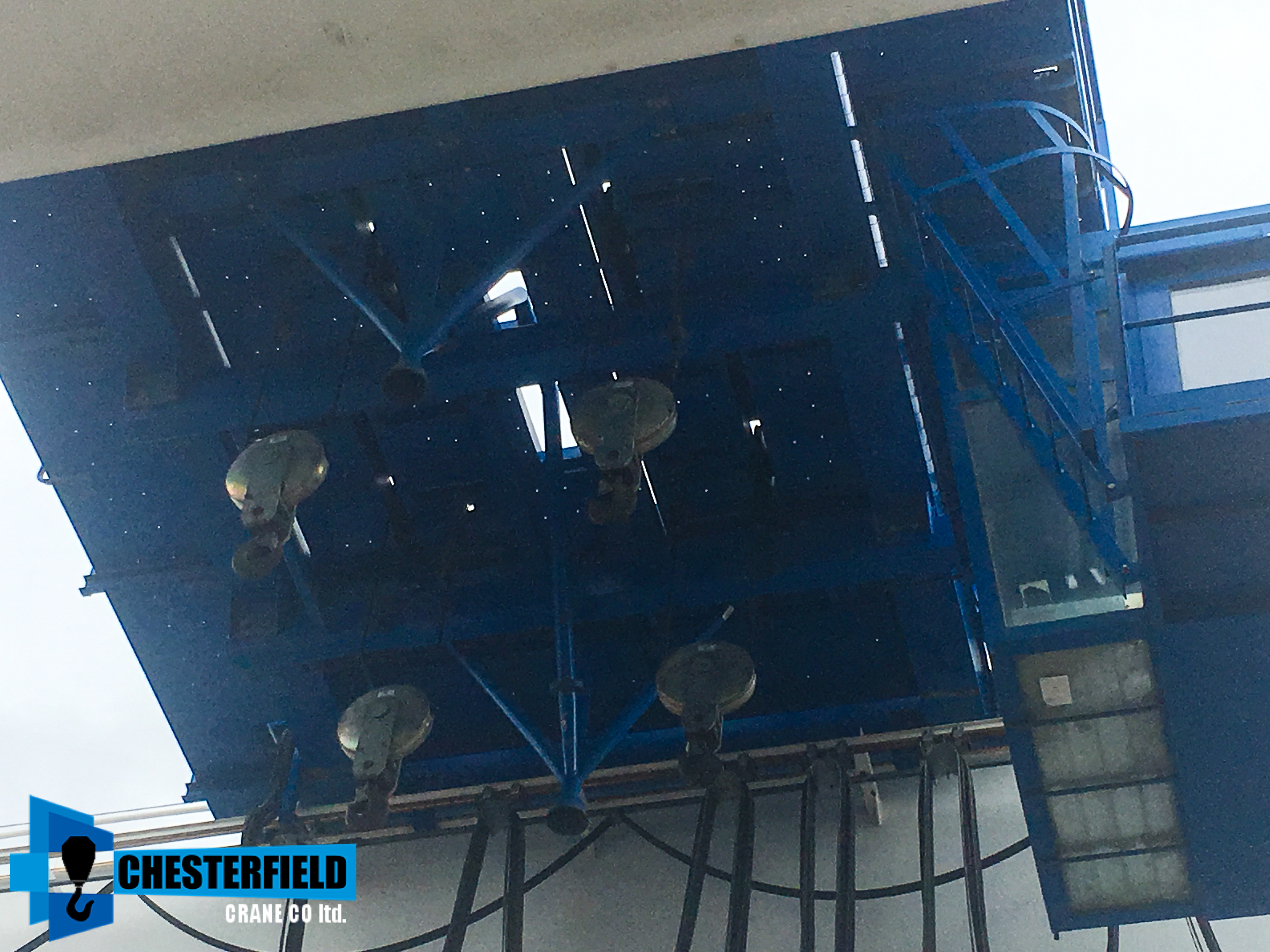

  • Main Hoist:  20 Tonnes (4 off 5 tonne wire rope hoists)
  • Main Hook:  Standard Hook
  • Hoist Mount:  Top Mounted
  • Features:  Low Headroom
  • Hoist Model / Type:  N/A
  • Lifting Gear:  Wire Rope

Control Systems

  • Year:  2012
  • Condition:  Used ‘As New’
  • Long Travel Control:  Inverter Dual Speed
  • Cross Travel Control:  Inverter Dual Speed
  • Up/Down Hoist Control:  Inverter Dual Speed
  • Up/Down Hoist Fast Speed:  5 m/min
  • Up/Down Hoist Slow Speed:  0.87 m/min
  • Cross Travel Fast Speed:  20 m/min
  • Cross Travel Slow Speed:  5 m/min
  • Control Long Travel Fast Speed:  32 m/min
  • Long Travel Slow Speed:  8 m/min
  • Motion Control Type:  12x Way Wireless Radio Remote Control
  • Main Voltage:  415V
  • Supply Voltage:  48V



Get in touch with us ??

Please get in contact via phone: 01246 454521 or email: sales@chesterfieldcrane.co.uk to learn more about our range of used gantry cranes and to see how we may be able to assist you. We have vast stocks ranging in sizes and can fabricate, re-fabricate, modify, engineer and design any type of crane you need ??

Provisional Specifications



Crane and Steelwork

  • Crane Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • SWL:  20,000kg
  • Span:  50,000mm
  • Number of Beam(s):  2x
  • Maintenance Platform:  Full Length Maintenance Walkway

Hoist and Carriages

  • Hoist Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • Duty Rating:  M5
  • Height of Lift:  10,000mm
  • Number of Hoist(s):  4x
  • Number of Auxiliary Hoist(s):  0x
  • Number of Crab Carriage Unit(s):  1x
  • Number of End Carriages:  2x (8 wheels)
  • Main Hoist:  5 Tonnes
  • Main Hook:  Standard Hook
  • Hoist Mount:  Top Mounted
  • Features:  Low Headroom
  • Hoist Model / Type:  N/A
  • Lifting Gear:  Wire Rope
  • 5 Tonne No. of Wire Rope Falls:  2x

Control Systems

  • Year:  2012
  • Condition:  Used ‘As New’
  • Long Travel Control:  Inverter Dual Speed
  • Cross Travel Control:  Inverter Dual Speed
  • Up/Down Hoist Control:  Inverter Dual Speed
  • Up/Down Hoist Fast Speed:  5 m/min
  • Up/Down Hoist Slow Speed:  0.87 m/min
  • Cross Travel Fast Speed:  20 m/min
  • Cross Travel Slow Speed:  5 m/min
  • Control Long Travel Fast Speed:  32 m/min
  • Long Travel Slow Speed:  8 m/min
  • Motion Control Type:  12x Way Wireless Radio Remote Control
  • Main Voltage:  415V
  • Supply Voltage:  48V

What is included with this crane?

This GH 2012 20 tonne 50 metre twin girder crane will come as a complete unit:

  • 2x Girders
  • Maintenance Walkways
  • Steelwork
  • 4x Hoist Units on 1x Crab Trolley Unit
  • End Carriages
  • Control Panels
  • Cross Travel Cable Festoon System and C-Track
  • Wireless Radio Remote Control

Used Cranes

When purchasing a used crane ‘as is’, as originally manufactured without being refurbished, it will come with all the original components. Used ‘as is’ cranes when sold don’t undergo our refurbishing process and are not modified (ie. cut down / extended) to the customer’s exact required span. We usually sell ‘as is’ cranes to customers who may want to re-span and modify the crane themselves, however we recommend that Chesterfield Crane Company take care of it and refurbish for you.

A used ‘as is’ crane will be cleaned down, serviced, tested pre-delivery, and comes with 12 months warranty.



Used Refurbished Cranes

If you are purchasing a used crane to be refurbished then part of our reconditioning process may include stripping down the fabricated torsional beams, servicing all components, shot blasting, spray painting, and re-fabricating and modifying pre-existing steelwork if required. This conforms to strict quality control procedures. Included with a used refurbished crane is a site survey for us to measure your facility and calculate precise rail centres. The crane will be resized exactly to your rail centres and ‘as new’ when complete.

Dependant upon the crane and condition of the control panel we have for sale, and dependant upon what the customer requires, our typical used refurbished package includes a brand new control panel with inverter variable dual speed drive for long travel and cross travel motions, and standard contactor dual speed for hoist travel motions. Inverter dual speed control for hoist motion is usually an optional extra that we would recommend based on how delicate your lifting application is, and must be requested before a crane build.

Whether brand new or used refurbished, all our cranes come with a LOLER, Test Certification and 12 months warranty.

Description

We have just bought 2x used GH 2012 20 tonne 51,000mm Goliath Gantry cranes, and they are ‘as new’. The cranes are inverter dual speed control and currently have 4x 5 tonne hoists on 1x 20 tonne crab unit for 4x point tandem lifting. We also have 20 and 20/5 tonne hoist and crab units if you require a different configuration.

If you wanted the crane refurbishing and modifying to suit your span (ie. cutting down) then our 82 metre long manufacturing facilities are capable of accommodating any crane.



Provisional Specifications



Crane and Steelwork

  • Crane Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • SWL:  20,000kg
  • Span:  51,000mm (25,500mm sections bolted together)
  • Number of Beam(s):  2x
  • Maintenance Platform:  Full Length Maintenance Walkway

Hoist and Carriages

  • Hoist Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • Duty Rating:  M5
  • Height of Lift:  10,000mm
  • Number of Hoist(s):  4x
  • Number of Auxiliary Hoist(s):  0x
  • Number of Crab Carriage Unit(s):  1x
  • Number of End Carriages:  2x (8 wheels)
  • Main Hoist:  20 Tonnes (4 off 5 tonne wire rope hoists)
  • Main Hook:  Standard Hook
  • Hoist Mount:  Top Mounted
  • Features:  Low Headroom
  • Hoist Model / Type:  N/A
  • Lifting Gear:  Wire Rope

Control Systems

  • Year:  2012
  • Condition:  Used ‘As New’
  • Long Travel Control:  Inverter Dual Speed
  • Cross Travel Control:  Inverter Dual Speed
  • Up/Down Hoist Control:  Inverter Dual Speed
  • Up/Down Hoist Fast Speed:  5 m/min
  • Up/Down Hoist Slow Speed:  0.87 m/min
  • Cross Travel Fast Speed:  20 m/min
  • Cross Travel Slow Speed:  5 m/min
  • Control Long Travel Fast Speed:  32 m/min
  • Long Travel Slow Speed:  8 m/min
  • Motion Control Type:  12x Way Wireless Radio Remote Control
  • Main Voltage:  415V
  • Supply Voltage:  48V



Get in touch with us ??

Please get in contact via phone: 01246 454521 or email: sales@chesterfieldcrane.co.uk to learn more about our range of used gantry cranes and to see how we may be able to assist you. We have vast stocks ranging in sizes and can fabricate, re-fabricate, modify, engineer and design any type of crane you need ??

Specification

Provisional Specifications



Crane and Steelwork

  • Crane Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • SWL:  20,000kg
  • Span:  50,000mm
  • Number of Beam(s):  2x
  • Maintenance Platform:  Full Length Maintenance Walkway

Hoist and Carriages

  • Hoist Manufacturer:  GH
  • Year of Manufacturer:  2012
  • Condition:  Used ‘As New’
  • Duty Rating:  M5
  • Height of Lift:  10,000mm
  • Number of Hoist(s):  4x
  • Number of Auxiliary Hoist(s):  0x
  • Number of Crab Carriage Unit(s):  1x
  • Number of End Carriages:  2x (8 wheels)
  • Main Hoist:  5 Tonnes
  • Main Hook:  Standard Hook
  • Hoist Mount:  Top Mounted
  • Features:  Low Headroom
  • Hoist Model / Type:  N/A
  • Lifting Gear:  Wire Rope
  • 5 Tonne No. of Wire Rope Falls:  2x

Control Systems

  • Year:  2012
  • Condition:  Used ‘As New’
  • Long Travel Control:  Inverter Dual Speed
  • Cross Travel Control:  Inverter Dual Speed
  • Up/Down Hoist Control:  Inverter Dual Speed
  • Up/Down Hoist Fast Speed:  5 m/min
  • Up/Down Hoist Slow Speed:  0.87 m/min
  • Cross Travel Fast Speed:  20 m/min
  • Cross Travel Slow Speed:  5 m/min
  • Control Long Travel Fast Speed:  32 m/min
  • Long Travel Slow Speed:  8 m/min
  • Motion Control Type:  12x Way Wireless Radio Remote Control
  • Main Voltage:  415V
  • Supply Voltage:  48V

Equipment

What is included with this crane?

This GH 2012 20 tonne 50 metre twin girder crane will come as a complete unit:

  • 2x Girders
  • Maintenance Walkways
  • Steelwork
  • 4x Hoist Units on 1x Crab Trolley Unit
  • End Carriages
  • Control Panels
  • Cross Travel Cable Festoon System and C-Track
  • Wireless Radio Remote Control

Additional Information

Used Cranes

When purchasing a used crane ‘as is’, as originally manufactured without being refurbished, it will come with all the original components. Used ‘as is’ cranes when sold don’t undergo our refurbishing process and are not modified (ie. cut down / extended) to the customer’s exact required span. We usually sell ‘as is’ cranes to customers who may want to re-span and modify the crane themselves, however we recommend that Chesterfield Crane Company take care of it and refurbish for you.

A used ‘as is’ crane will be cleaned down, serviced, tested pre-delivery, and comes with 12 months warranty.



Used Refurbished Cranes

If you are purchasing a used crane to be refurbished then part of our reconditioning process may include stripping down the fabricated torsional beams, servicing all components, shot blasting, spray painting, and re-fabricating and modifying pre-existing steelwork if required. This conforms to strict quality control procedures. Included with a used refurbished crane is a site survey for us to measure your facility and calculate precise rail centres. The crane will be resized exactly to your rail centres and ‘as new’ when complete.

Dependant upon the crane and condition of the control panel we have for sale, and dependant upon what the customer requires, our typical used refurbished package includes a brand new control panel with inverter variable dual speed drive for long travel and cross travel motions, and standard contactor dual speed for hoist travel motions. Inverter dual speed control for hoist motion is usually an optional extra that we would recommend based on how delicate your lifting application is, and must be requested before a crane build.

Whether brand new or used refurbished, all our cranes come with a LOLER, Test Certification and 12 months warranty.
