Used 1997 ABUS 3.2 Tonne 14 Metre Single Beam M4 Overhead Crane for Sale

Product ID: 1515
Gallery Thumbnail
Gallery Thumbnail
Gallery Thumbnail
Gallery Thumbnail
Gallery Thumbnail



We have 1 off used 1997 ABUS 3.2 tonne 14 metre single girder M4 overhead crane in stock.

When we come to refurbish the crane it will get re-sized, such as cut down or extended, to suit the customer’s rail centres. It can also get modified to suit a customers headroom such as altering the top taper on each end of the girder to run in line with any rof eave support brackets, or stool the crane up for more height of lift.

The steelwork would also be shot blasted and spray painted with new stick decals.

The overhead crane would be sold with the original used ‘as is’ dual-speed contactor control panel equipment. A brand new inverter variable multi-speed frequency control panel for all travel motions can also be incorporate for a small additional cost.

If you are looking for a cheaper option than brand new then send us an email enquiry to sales@chesterfieldcrane.co.uk for a bargain price on this excellent used ABUS. We also offer delivery, install, commissioning and proof load testing services for an all-in-one package offer.





Provisional Guideline Crane Specifications

  • Crane Beam and Steelwork Manufacturer:                                                                                   Abus, 1997
  • End Carriage Manufacturer:                                                                                                          Abus, 1997
  • Hoist and Trolley Unit Manufacturer:                                                                                              Abus, 1997
  • Hoist and Trolley Unit Travel Control Panel Gear Manufacturer:                                                 Abus, 1997
  • Crane Long-Travel Control Panel Manufacturer:                                                                           Abus, 1997
  • Crane Type:  Electronic Overhead Travelling Crane
  • Usage                                                                                                                           Indoor Non-Aggressive
  • Crane Condition                                                                                                                 Used Refurbished
  • Crane SWL                                                                                                                                       3,200kg
  • Span                                                        Approx. 14,000mm (sire survey and/or drawing to determine re-sizing)
  • Height of Lift (Hook Path)                                                                                                    Approx. 6,000mm
  • Duty Rating                                                                                                                                               M4
  • Number of and Type of Bridge Crane Beam(s)                                                                        1x, Girder
  • Main Power                                                                                                                                               415V
  • MAX kW Output                                                                                                                      Approx. 5 kW
  • Fuse Protection Rating, MAX kW Output                                                        20 – 32 Amps per crane (TBC)
  • Required Busbar Conductor System (based on 1 off 3.2T crane being used in fast speed)  100 Amps MIN





Hoist Specifications (Hoist Travel, Up/Down)

  • Main Hoist SWL                                                                                                                                3,200kg
  • Number of Hoist(s)                                                                                                                                        1x
  • Hoist Mount                                                                                                                              Underhung

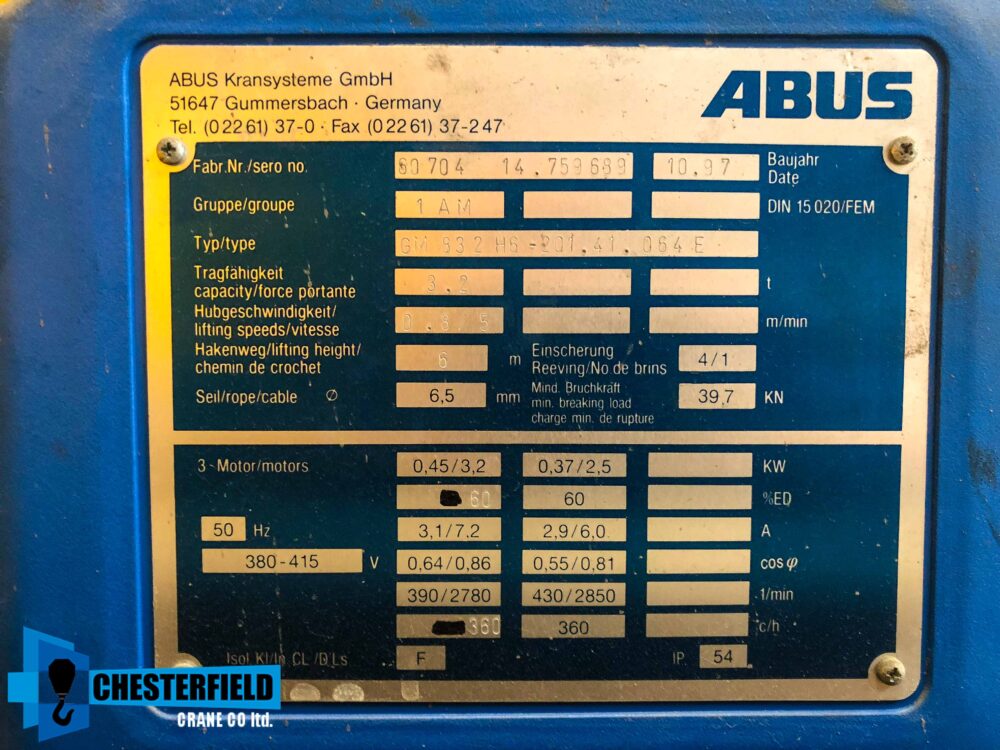

  • Hoist Model                                                                                                                                         TBC
  • Hoist Duty                                                                                                                                                   M4
  • Main Hoist kW Output Power                                                                     Approx. 1x, 0.45 / 3.2 kW per motor
  • Lifting Gear                                                   4 off Wire Rope Falls and 1 off Single Hook and Sheave Block
  • Main Hoist Travel Control                                                                                Contactor Dual Speed Control
  • Main Hoist Travel Fast Speed                                                                                                Approx. 4m/min
  • Main Hoist Cross Travel Slow Speed                                                                                  Approx. 1 m/min





Trolley Unit Specifications (Cross Travel, Left/Right)

  • Trolley Unit SWL                                                                                                                          3,200kg
  • Number of Cross Travel Trolley Unit(s)                                                                                                        1x
  • Trolley Mount                                                                                                                                 Underhung
  • Trolley Duty                                                                                                                                             M4
  • Trolley Unit kW Output Power                                                             Approx. 1x, 0.1 – 0.4 kW per motor
  • Cross Travel Control                                                                                      Contactor Dual Speed Control
  • Cross Travel Fast Speed                                                                                                  Approx. 20 m/min
  • Cross Travel Slow Speed                                                                                                      Approx. 5 m/min





End Carriage Specifications (Long Travel, Forward/Reverse)



  • Combined End Carriage SWL                                                                                                          3,200kg
  • No. of End Carriages                                                                   2x (4x long-life anti-friction flanged wheels)
  • End Carriage Mount                                                                     Side mounted connection plates (In shear)
  • End Carriage Model                                                                                                                                  TBC
  • End Carriage Duty                                                                                                                                      M4
  • End Carriage kW Output Power                                                             Approx. 2x, 0.1 / 0.4 kW per motor
  • End Carriage Wheel Groove                                                       54mm for 40mm x 30mm crane rail (TBC)
  • Long Travel Control                                                                                           Contactor Dual Speed Control
  • Long Travel Fast Speed                                                                                                  Approx. 32 m/min
  • Long Travel Slow Speed                                                                                                   Approx. 8 m/min







1 OFF,  3.2T SWL USED REFURBISHED COMPLETE CRANE INCLUDES



Inc. 1x, 3.2 Tonne SWL Girder and Steelwork with 14,000mm (customer’s new span TBC) rail centres

Inc. 2x, Combined 3.2 tonnes SWL M4 end carriages

Inc. 1x, 3.2 tonne SWL underhung mounted M4 wire rope hoist trolley unit complete

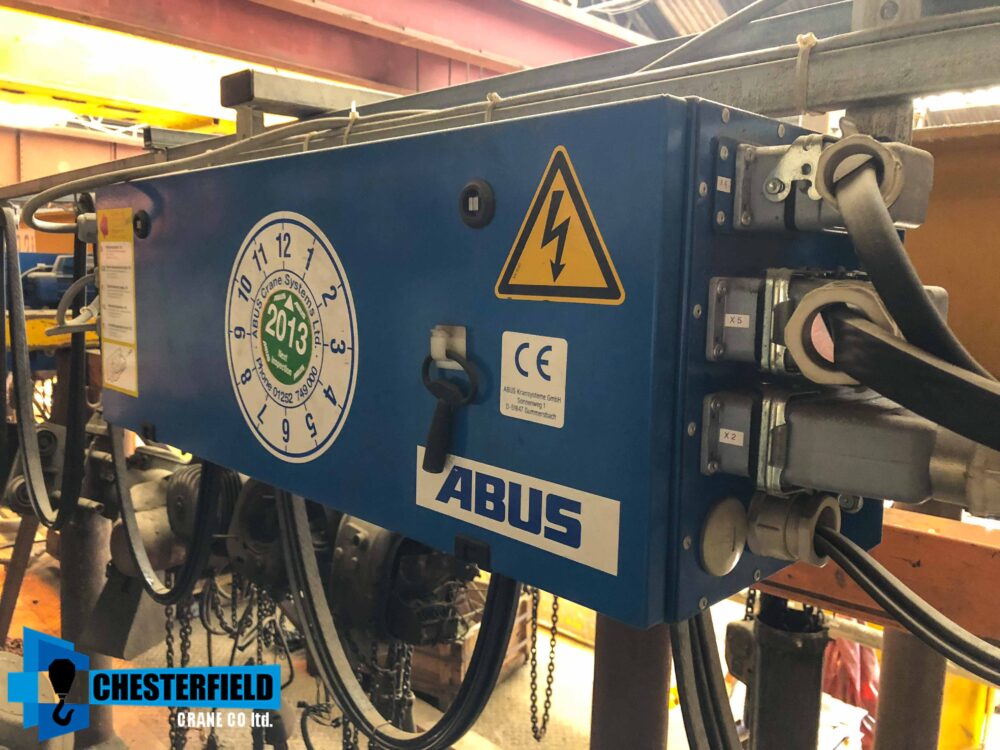

Inc. 1x, Original used as is dual-speed contactor control gear for crane long L-travel

Inc. 1x, Original used as is dual-speed contactor control travel motions for trolley X-travel

Inc. 1x, Original used as is dual-speed contactor control travel motions for hoist up/down H-travel

Inc. 1x ‘Used as is’ cabling and control panel systems

Inc. 1x, ‘Used as is’ cable pendant control and roller bearing c-track festoon cable systems

Inc. 1x, Servicing and testing

Inc. 1x, Site survey (exc. hired in access)

Inc. 1x, 12 months warranty (subject to 4 off interim service maintenance checks)

Inc. Crane modified, refurbished and re-manufactured by CE Marked Company, including documentation package

Inc. Crane modified, refurbished and re-manufactured in accordance with BS EN 1090 (execution class 2), including documentation package

Inc. Crane modified, refurbished and re-manufactured by ISO 9001 accredited company, including documentation package

Inc. Welders coded to BS EN ISO 15614-1 & BS EN 287-1 / BS EN ISO 9606-1

Inc. NDE documentation package inc. MPI Category B weld testing document package and conformity certification

Inc. Crane refurbished and re-manufactured in accordance with BS EN 13001-1:2015

Inc. Crane refurbished and re-manufactured in accordance with LEEA 067 Guidelines Version 2 March 2018

Inc. Crane refurbished and re-manufactured in accordance with BS EN 15011:2011 + A1:2014

Inc. Chemical analysis certificate of used steel (BS EN 1090-2 execution class 2)

Inc. In-house proof load test certificate of conformity

Inc. Electrical and mechanical factory acceptance testing (FAT) document package

Exc. Parts file. In the event a crane spare parts file needs putting together during the build this must be requested prior to order

Inc. EU Declaration of Conformity

Inc. Schematic Panel Wiring Diagrams (TBC). Only if crane supplied with brand new control panel – please request diagrams prior to order

Inc. Wire rope certificate (only if fitted with brand new wire rope). If a mandatory new wire rope is required please state before ordering

Inc. Correlating directorial stickers and logo decals





Get in touch with us ??

Please get in contact via phone: 01246 454521 or email: sales@chesterfieldcrane.co.uk to learn more about our range of used overhead cranes and to see how we may be able to assist you. We have vast stocks ranging in sizes and can fabricate, re-fabricate, modify, engineer and design any type of crane you need ??



POWER SUPPLY AND FUSE PROTECTION



For the proposed overhead crane the below electrical information is a rough approximate guideline as to what fuse protection is required in your facility for the crane to operate successfully. We always recommend giving yourself more fuse protection if you are able and going up to the next fuse rating.



1 off, 3.2 Tonne 14,000mm Single Beam Overhead Crane:  APPROX Output (per crane)

  • Crane MAX Total kW Output (all the motor kW ratings added together when all in fast speed)            5 kW
  • Nominal ‘Running’ Current Output (in Amps)                                                                                     10 amps
  • Starting ‘Inrush’ Current Output (in Amps)                                                                                        50 amps
  • Required Fuse Protection (per crane)                                             20 – 32 amps MINIMUM recommended
  • Required MCB Trip Rating            C Rated (‘C’ allows inrush current up to approx. 5x the ‘running current’)
  • Required busbar conductor system for 1 off crane                                                                 100amp system
  • 415V supply cable thickness                                                    Customer’s responsibility ie. 50mm² tri-rated



BUSBAR CONDUCTOR SYSTEM: LOW LEVEL ISOLATOR TO THE HIGH LEVEL TERMINAL

From the low level isolator the high level terminal point should have DIN rail and modular terminal connection blocks to connect to (isolator – terminal – busbar).

From the terminal point to busbar we need approx. 3 metres (or however many metres of cable need to reach the busbar feed point near the gantry beam section) of approx. 70mm² cable with 70mm² 10mm crimped lugs.



NOTE: When deciding upon your 415V cable thickness, MCB trip, MCCB and fuse protection please bear in mind the ‘diversity factor’ (usage of any and all 415V equipment/machines on the same supply at one time in that one facility).

NOTE. The busbar conductor and fuse protection may be upgrading to a bigger capacity .ie 200amps if multiple cranes are operating in fast speed on the same system at the same time.

This means you must consider what will be the worst case scenario on that 415V busbar conductor system, for example if you have multiple cranes operating on the same gantry and using the same busbar conductor system (using the same fuse) and all the multiple crane’s travel motions are then powered up in fast speed all at the same time, which would result in more inrush current and consequently needing bigger fuse protection. If this is unlikely (diversity factor) and never going to happen then lower fuse protection would be sufficient.

It is the responsibility of the customer to consult an electrical contractor in order to calculate the precise running currents and inrush currents based on the crane‘s motor sizes (and if the crane has soft start or inverter frequency control – if included in the panel) in order to calculate the minimum required fuse protection.



The used ABUS 3.2 tonne 14 metre current dimensions are as follows:

  1. Girder depth:  387mm
  2. End carriage depth (from the bottom of the flanged wheel to the top of the end carriage):  170mm
  3. Distance the hook hangs down underneath girder: Approx. 600mm
  4. Top of the girder current taper depth:  120mm down (adding on an extra 120mm of achievable height of lift)
  5. Top of the girder current taper length:  230mm across
  6. End carriage double flanged groove:  54mm for 40mm x 30mm (40mm x 40mm) crane rail
Total crane depth (girder depth + hook throat when hook is fully raised) of 987mm

Description



We have 1 off used 1997 ABUS 3.2 tonne 14 metre single girder M4 overhead crane in stock.

When we come to refurbish the crane it will get re-sized, such as cut down or extended, to suit the customer’s rail centres. It can also get modified to suit a customers headroom such as altering the top taper on each end of the girder to run in line with any rof eave support brackets, or stool the crane up for more height of lift.

The steelwork would also be shot blasted and spray painted with new stick decals.

The overhead crane would be sold with the original used ‘as is’ dual-speed contactor control panel equipment. A brand new inverter variable multi-speed frequency control panel for all travel motions can also be incorporate for a small additional cost.

If you are looking for a cheaper option than brand new then send us an email enquiry to sales@chesterfieldcrane.co.uk for a bargain price on this excellent used ABUS. We also offer delivery, install, commissioning and proof load testing services for an all-in-one package offer.





Provisional Guideline Crane Specifications

  • Crane Beam and Steelwork Manufacturer:                                                                                   Abus, 1997
  • End Carriage Manufacturer:                                                                                                          Abus, 1997
  • Hoist and Trolley Unit Manufacturer:                                                                                              Abus, 1997
  • Hoist and Trolley Unit Travel Control Panel Gear Manufacturer:                                                 Abus, 1997
  • Crane Long-Travel Control Panel Manufacturer:                                                                           Abus, 1997
  • Crane Type:  Electronic Overhead Travelling Crane
  • Usage                                                                                                                           Indoor Non-Aggressive
  • Crane Condition                                                                                                                 Used Refurbished
  • Crane SWL                                                                                                                                       3,200kg
  • Span                                                        Approx. 14,000mm (sire survey and/or drawing to determine re-sizing)
  • Height of Lift (Hook Path)                                                                                                    Approx. 6,000mm
  • Duty Rating                                                                                                                                               M4
  • Number of and Type of Bridge Crane Beam(s)                                                                        1x, Girder
  • Main Power                                                                                                                                               415V
  • MAX kW Output                                                                                                                      Approx. 5 kW
  • Fuse Protection Rating, MAX kW Output                                                        20 – 32 Amps per crane (TBC)
  • Required Busbar Conductor System (based on 1 off 3.2T crane being used in fast speed)  100 Amps MIN





Hoist Specifications (Hoist Travel, Up/Down)

  • Main Hoist SWL                                                                                                                                3,200kg
  • Number of Hoist(s)                                                                                                                                        1x
  • Hoist Mount                                                                                                                              Underhung
  • Hoist Model                                                                                                                                         TBC
  • Hoist Duty                                                                                                                                                   M4
  • Main Hoist kW Output Power                                                                     Approx. 1x, 0.45 / 3.2 kW per motor
  • Lifting Gear                                                   4 off Wire Rope Falls and 1 off Single Hook and Sheave Block
  • Main Hoist Travel Control                                                                                Contactor Dual Speed Control
  • Main Hoist Travel Fast Speed                                                                                                Approx. 4m/min
  • Main Hoist Cross Travel Slow Speed                                                                                  Approx. 1 m/min





Trolley Unit Specifications (Cross Travel, Left/Right)

  • Trolley Unit SWL                                                                                                                          3,200kg
  • Number of Cross Travel Trolley Unit(s)                                                                                                        1x
  • Trolley Mount                                                                                                                                 Underhung
  • Trolley Duty                                                                                                                                             M4
  • Trolley Unit kW Output Power                                                             Approx. 1x, 0.1 – 0.4 kW per motor
  • Cross Travel Control                                                                                      Contactor Dual Speed Control
  • Cross Travel Fast Speed                                                                                                  Approx. 20 m/min
  • Cross Travel Slow Speed                                                                                                      Approx. 5 m/min





End Carriage Specifications (Long Travel, Forward/Reverse)



  • Combined End Carriage SWL                                                                                                          3,200kg
  • No. of End Carriages                                                                   2x (4x long-life anti-friction flanged wheels)
  • End Carriage Mount                                                                     Side mounted connection plates (In shear)
  • End Carriage Model                                                                                                                                  TBC
  • End Carriage Duty                                                                                                                                      M4
  • End Carriage kW Output Power                                                             Approx. 2x, 0.1 / 0.4 kW per motor
  • End Carriage Wheel Groove                                                       54mm for 40mm x 30mm crane rail (TBC)
  • Long Travel Control                                                                                           Contactor Dual Speed Control
  • Long Travel Fast Speed                                                                                                  Approx. 32 m/min
  • Long Travel Slow Speed                                                                                                   Approx. 8 m/min







1 OFF,  3.2T SWL USED REFURBISHED COMPLETE CRANE INCLUDES



Inc. 1x, 3.2 Tonne SWL Girder and Steelwork with 14,000mm (customer’s new span TBC) rail centres

Inc. 2x, Combined 3.2 tonnes SWL M4 end carriages

Inc. 1x, 3.2 tonne SWL underhung mounted M4 wire rope hoist trolley unit complete

Inc. 1x, Original used as is dual-speed contactor control gear for crane long L-travel

Inc. 1x, Original used as is dual-speed contactor control travel motions for trolley X-travel

Inc. 1x, Original used as is dual-speed contactor control travel motions for hoist up/down H-travel

Inc. 1x ‘Used as is’ cabling and control panel systems

Inc. 1x, ‘Used as is’ cable pendant control and roller bearing c-track festoon cable systems

Inc. 1x, Servicing and testing

Inc. 1x, Site survey (exc. hired in access)

Inc. 1x, 12 months warranty (subject to 4 off interim service maintenance checks)

Inc. Crane modified, refurbished and re-manufactured by CE Marked Company, including documentation package

Inc. Crane modified, refurbished and re-manufactured in accordance with BS EN 1090 (execution class 2), including documentation package

Inc. Crane modified, refurbished and re-manufactured by ISO 9001 accredited company, including documentation package

Inc. Welders coded to BS EN ISO 15614-1 & BS EN 287-1 / BS EN ISO 9606-1

Inc. NDE documentation package inc. MPI Category B weld testing document package and conformity certification

Inc. Crane refurbished and re-manufactured in accordance with BS EN 13001-1:2015

Inc. Crane refurbished and re-manufactured in accordance with LEEA 067 Guidelines Version 2 March 2018

Inc. Crane refurbished and re-manufactured in accordance with BS EN 15011:2011 + A1:2014

Inc. Chemical analysis certificate of used steel (BS EN 1090-2 execution class 2)

Inc. In-house proof load test certificate of conformity

Inc. Electrical and mechanical factory acceptance testing (FAT) document package

Exc. Parts file. In the event a crane spare parts file needs putting together during the build this must be requested prior to order

Inc. EU Declaration of Conformity

Inc. Schematic Panel Wiring Diagrams (TBC). Only if crane supplied with brand new control panel – please request diagrams prior to order

Inc. Wire rope certificate (only if fitted with brand new wire rope). If a mandatory new wire rope is required please state before ordering

Inc. Correlating directorial stickers and logo decals





Get in touch with us ??

Please get in contact via phone: 01246 454521 or email: sales@chesterfieldcrane.co.uk to learn more about our range of used overhead cranes and to see how we may be able to assist you. We have vast stocks ranging in sizes and can fabricate, re-fabricate, modify, engineer and design any type of crane you need ??

Specification



POWER SUPPLY AND FUSE PROTECTION



For the proposed overhead crane the below electrical information is a rough approximate guideline as to what fuse protection is required in your facility for the crane to operate successfully. We always recommend giving yourself more fuse protection if you are able and going up to the next fuse rating.



1 off, 3.2 Tonne 14,000mm Single Beam Overhead Crane:  APPROX Output (per crane)

  • Crane MAX Total kW Output (all the motor kW ratings added together when all in fast speed)            5 kW
  • Nominal ‘Running’ Current Output (in Amps)                                                                                     10 amps
  • Starting ‘Inrush’ Current Output (in Amps)                                                                                        50 amps
  • Required Fuse Protection (per crane)                                             20 – 32 amps MINIMUM recommended
  • Required MCB Trip Rating            C Rated (‘C’ allows inrush current up to approx. 5x the ‘running current’)
  • Required busbar conductor system for 1 off crane                                                                 100amp system
  • 415V supply cable thickness                                                    Customer’s responsibility ie. 50mm² tri-rated



BUSBAR CONDUCTOR SYSTEM: LOW LEVEL ISOLATOR TO THE HIGH LEVEL TERMINAL

From the low level isolator the high level terminal point should have DIN rail and modular terminal connection blocks to connect to (isolator – terminal – busbar).

From the terminal point to busbar we need approx. 3 metres (or however many metres of cable need to reach the busbar feed point near the gantry beam section) of approx. 70mm² cable with 70mm² 10mm crimped lugs.



NOTE: When deciding upon your 415V cable thickness, MCB trip, MCCB and fuse protection please bear in mind the ‘diversity factor’ (usage of any and all 415V equipment/machines on the same supply at one time in that one facility).

NOTE. The busbar conductor and fuse protection may be upgrading to a bigger capacity .ie 200amps if multiple cranes are operating in fast speed on the same system at the same time.

This means you must consider what will be the worst case scenario on that 415V busbar conductor system, for example if you have multiple cranes operating on the same gantry and using the same busbar conductor system (using the same fuse) and all the multiple crane’s travel motions are then powered up in fast speed all at the same time, which would result in more inrush current and consequently needing bigger fuse protection. If this is unlikely (diversity factor) and never going to happen then lower fuse protection would be sufficient.

It is the responsibility of the customer to consult an electrical contractor in order to calculate the precise running currents and inrush currents based on the crane‘s motor sizes (and if the crane has soft start or inverter frequency control – if included in the panel) in order to calculate the minimum required fuse protection.

Additional Information



The used ABUS 3.2 tonne 14 metre current dimensions are as follows:

  1. Girder depth:  387mm
  2. End carriage depth (from the bottom of the flanged wheel to the top of the end carriage):  170mm
  3. Distance the hook hangs down underneath girder: Approx. 600mm
  4. Top of the girder current taper depth:  120mm down (adding on an extra 120mm of achievable height of lift)
  5. Top of the girder current taper length:  230mm across
  6. End carriage double flanged groove:  54mm for 40mm x 30mm (40mm x 40mm) crane rail
Total crane depth (girder depth + hook throat when hook is fully raised) of 987mm
