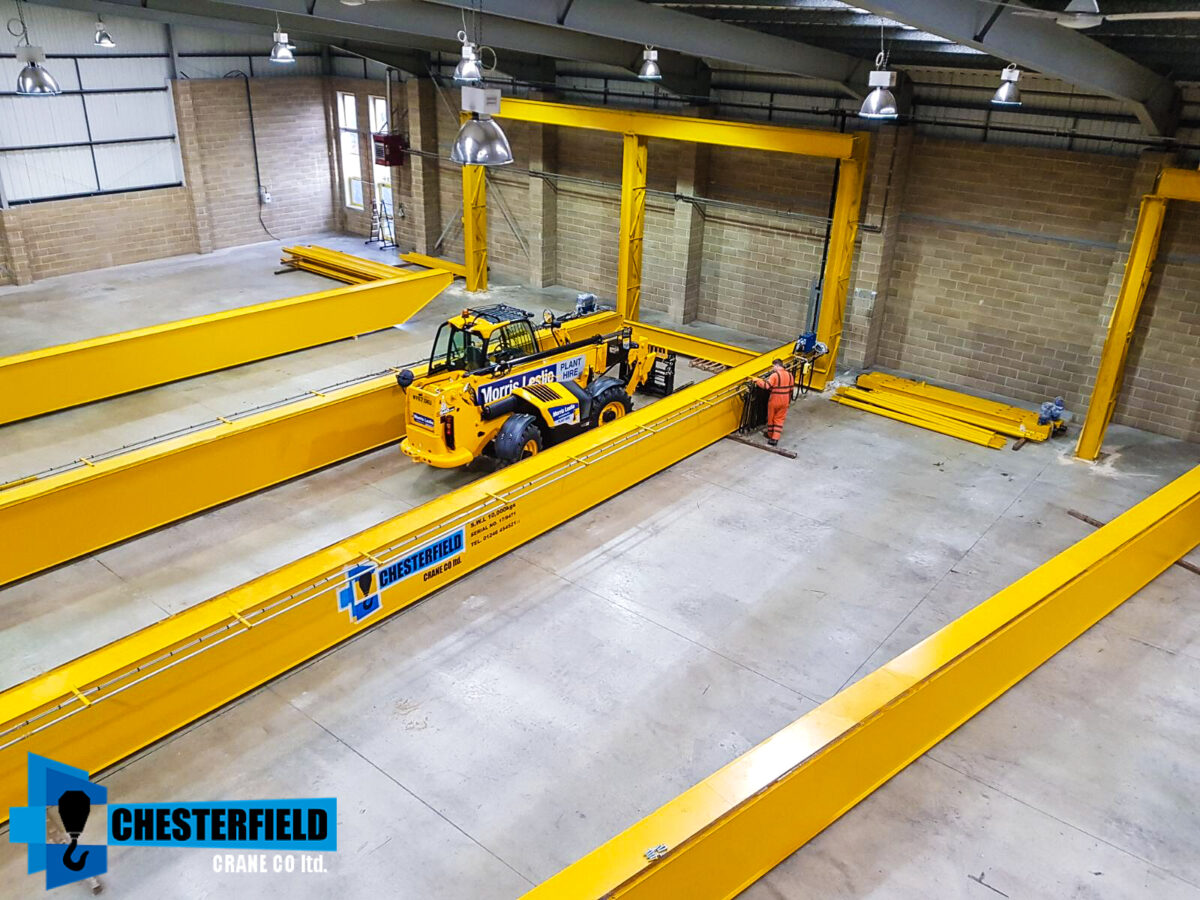

20,000kg SWL 43 Metre Freestanding Gantry

Specifications

• Gantry Manufacturer:  Chesterfield Crane Company
• Year of Manufacturer:  2017
• Condition:  Brand New
• SWL:  20,000kg (2x 10 tonne cranes)
• Span:  24,000mm
• Height to the top of the crane rails: Approx. 6000mm
• Number of Cranes on Gantry:  2x
• Crane No.1 MAX SWL:  10,000kg + 25% Safety Factor (12,500kg)
• Crane No.2 MAX SWL:  10,000kg+ 25% Safety Factor (12,500kg)
• Weight of each crane on Gantry:  Approx. 10,000kg per crane
• Gantry MAX Capacity:  25,000kg MAX SWL load + 20,000kg crane weight + 25% Safety Factor (10,000kg), 56.25 Tonnes

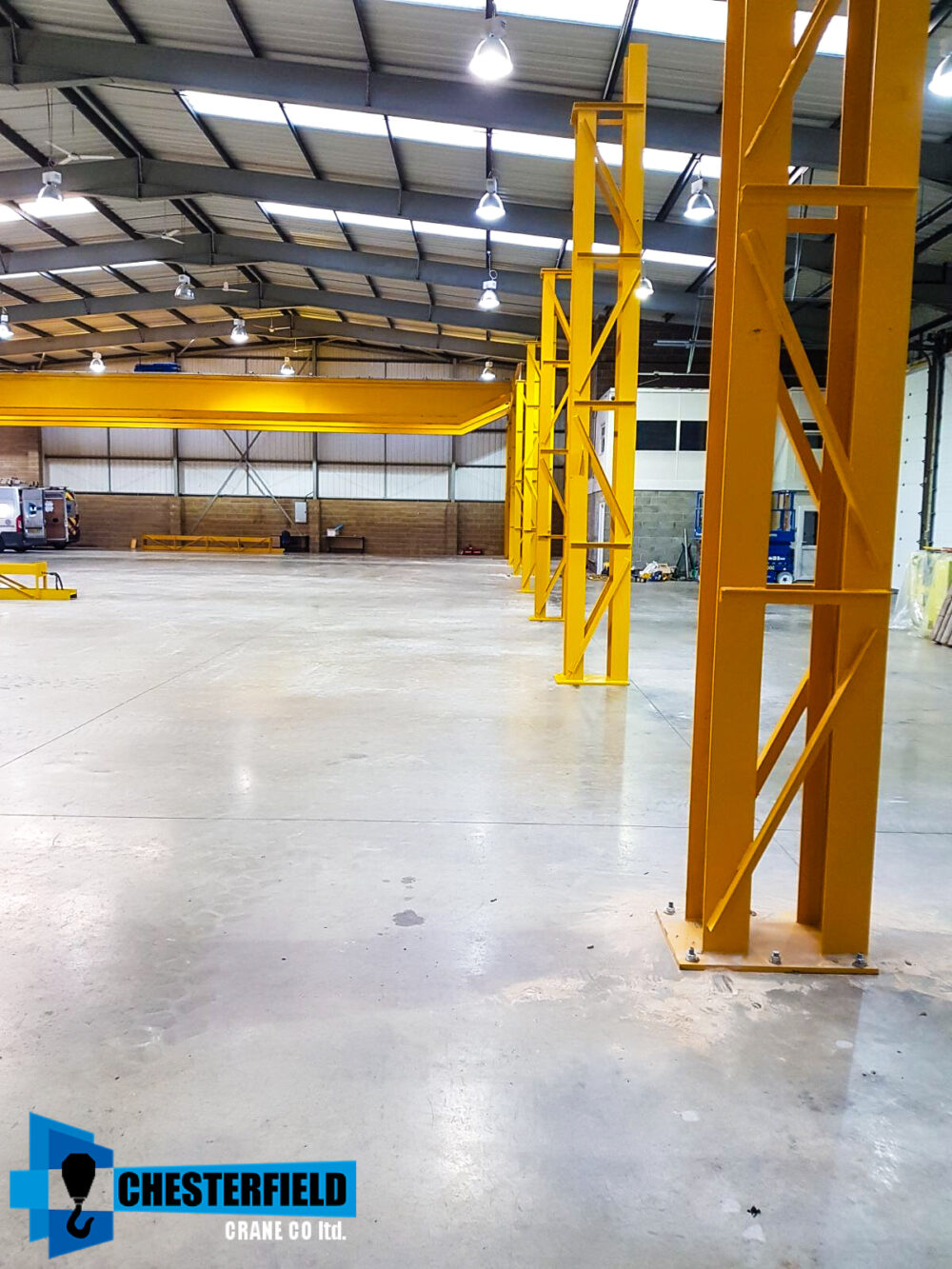

• Leg Design:  Doubled legged with strut supports

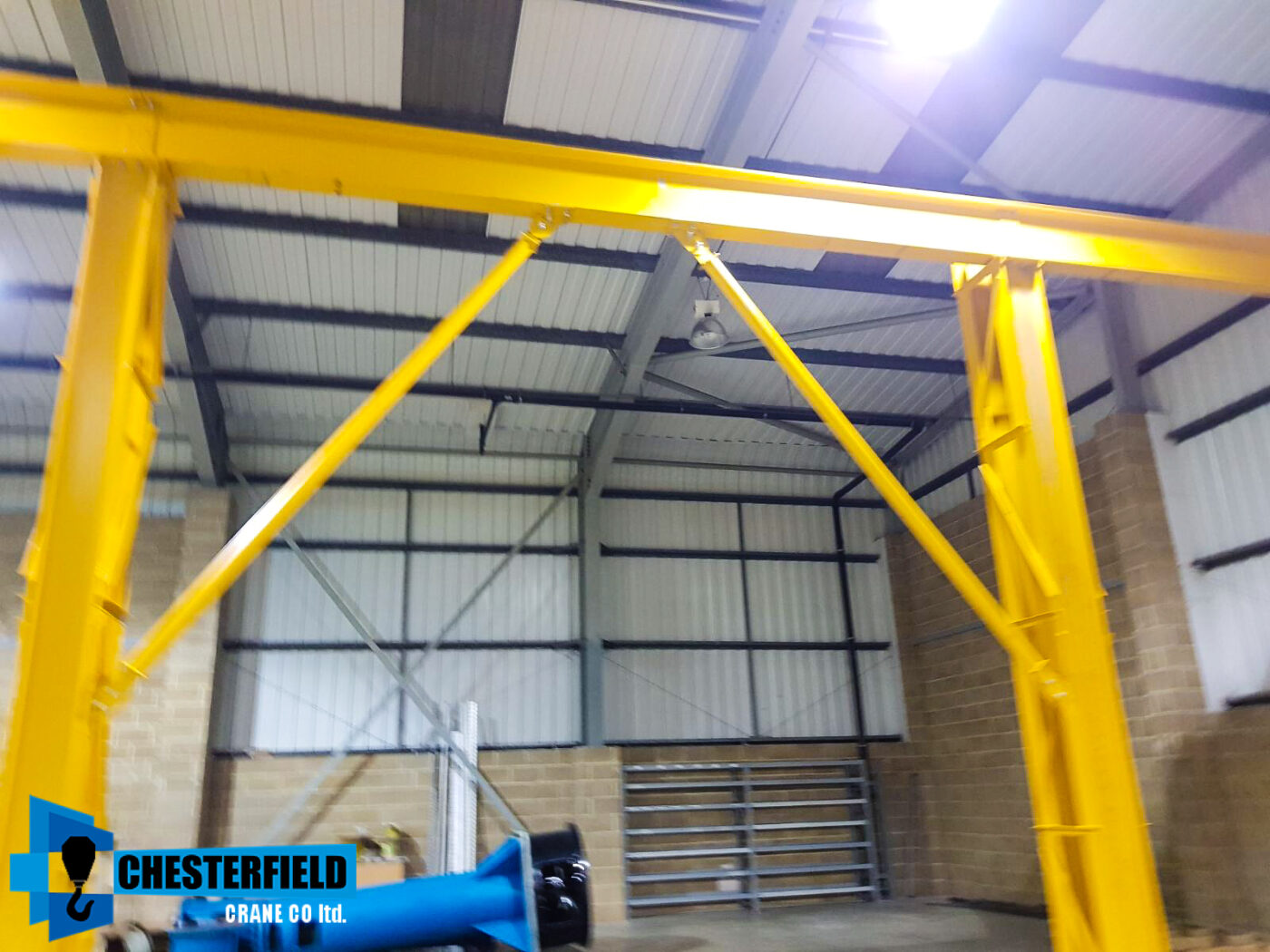

• Surge Bracings:  Included for directional load
